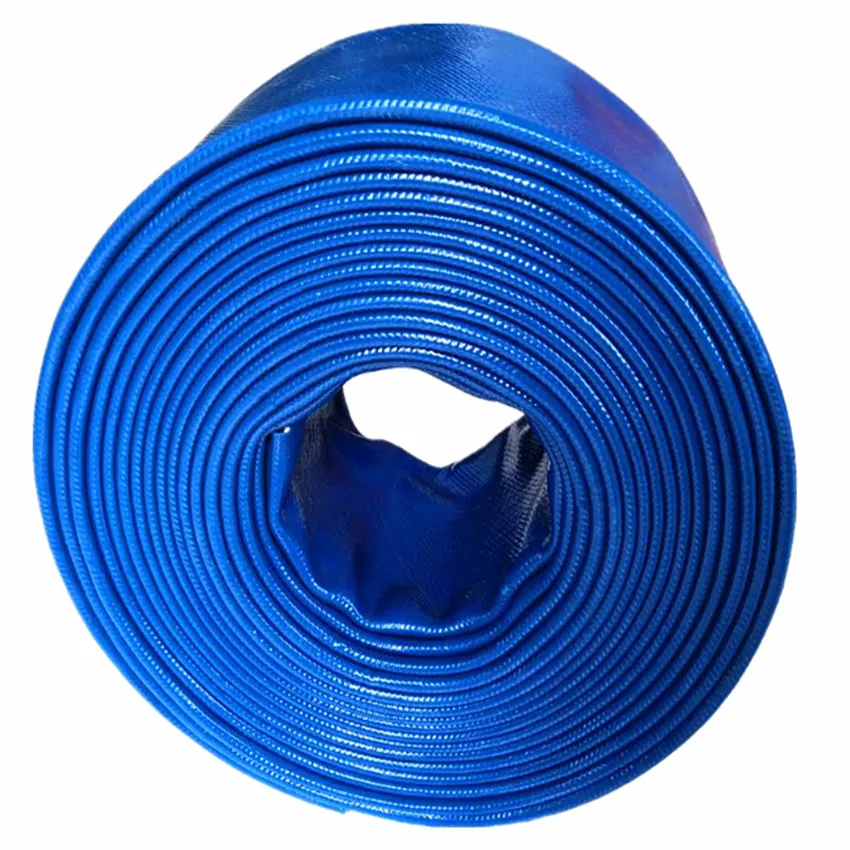

High Pressure TPU Lay Flat Hose

ЗВ'ЯЖІТЬСЯ ЗАРАЗ завантажити завантажити в pdf

Подробиці

Теги

The hose has high resistance against commonly used chemicals and has excellent resistance to UV radiation, hydrolysis and fungus degradation. The abrasion resistance of the TPU is one of the highest available, making the hose ideal for use in the extremely abrasive environment in open pit mines. The outer cover has been designed with extra thickness.
характеристика:
Abrasion high-resistant,oil resistance, Acid and alkali resistance, corrosion resistance, cold resistance, small flow resistance
температура: -55ºC(-131ºF) to 80ºC(+176ºF)

heavy duty lay flat hose

Specification

Розмір	ID	WP		BP		Thick	вага	Довжина
Inch	мм	Бар	PSI	Бар	PSI	мм	kg/m	м/рулон
1"	25	20	300	60	900	3	0.23	20-200
2"	51	20	300	60	900	3.6	0.5	20-200
2-1/2"	63.5	16	232	48	696	3.8	0.68	20-200
3"	76	16	232	48	696	3.8	1	20-200
4"	102	16	232	48	696	4.3	1.6	20-200
5"	127	16	232	48	696	4.6	1.9	20-200
6"	152	13	200	39	565	4.8	2.4	20-200
8"	203	10	145	30	290	4.8	3.1	20-200
10"	254	10	145	30	290	5	4	20-200
12"	305	10	145	30	290	5.2	4.8	20-200
14"	356	10	145	30	290	5.2	5.6	20-200
