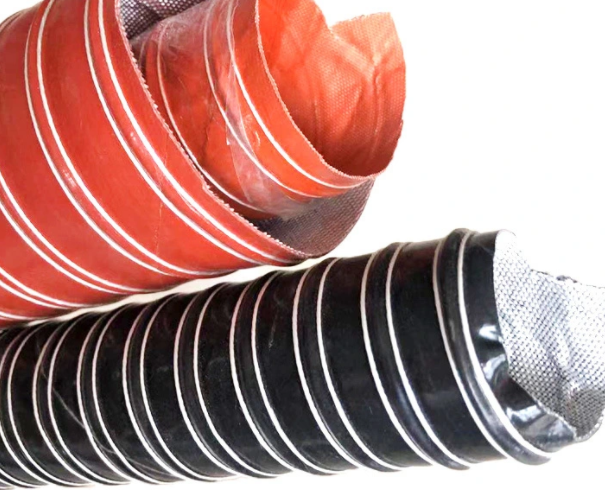

SILICONE COATED GLASS FIBER DUCT

Silicone Coated Glass Fiber DUCT-Resistant to 300 ° C constructed dual-layer structure is made of silicone coated glass fiber +glass fiber cord, which is reinforced with spiral spring steel wire. Silicone Coated Glass Fiber Duct-Resistant to 300 ° C is a high-performance protection material, which is widely used in industrial and commercial fields.

CONTACT NOW down load to pdf

Details

Tags

PRODUCT DETAILS

Silicone coated glass fiber duct-resistant to 300℃ is an ideal high temperature protection and insulation material. Silicone Coated Glass Fiber has anti-aging properties and heat resistance, as well as strong corrosion resistance. It can effectively resist corrosion from acid and alkali media. Under normal circumstances, it can maintain safe operation for a long time. Glass Fiber Cord ensures that the product will not fall apart under any circumstances. Considering the comprehensive materials, its temperature applicable range is -70℃ to +300℃ ,short time to +350℃.

Construction:

Wall: Silicone coated glass fiber fabric

Spiral: Spring steel wire

Reinforcement: Glass fiber cord

Working Temperature Range: -70ºC to +300ºC ,short time to +350ºC

Size	I.D.	Pressure	Vacuum Pressure	Bending Radius	Length
inch	mm	bar	bar	mm
3/4"	19	3	0.8	25	4
1"	25	3	0.76	29	4
1-1/4"	32	2.8	0.65	36	4
1-1/2"	38	2.6	0.6	43	4
2-3/4"	44	2.6	0.58	49	4
2"	50	2.6	0.55	56	4
2-1/2"	63	2.4	0.46	68	4
3"	75	2.1	0.43	81	4
3-1/4"	80	2.1	0.4	90	4
3-1/2"	89	2.0	0.35	100	4
4"	102	1.9	0.35	105	4
5"	127	1.5	0.28	133	4
6"	152	1.4	0.28	156	4
6.2	160	1.2	0.17	175	4
7"	180	1	0.15	190	4
8"	200	0.8	0.1	210	4
10"	250	0.6	0.08	260	4
12"	300	0.5	0.07	310	4
14"	350	0.4	0.06	370	4
16"	400	0.3	0.05	420	4
