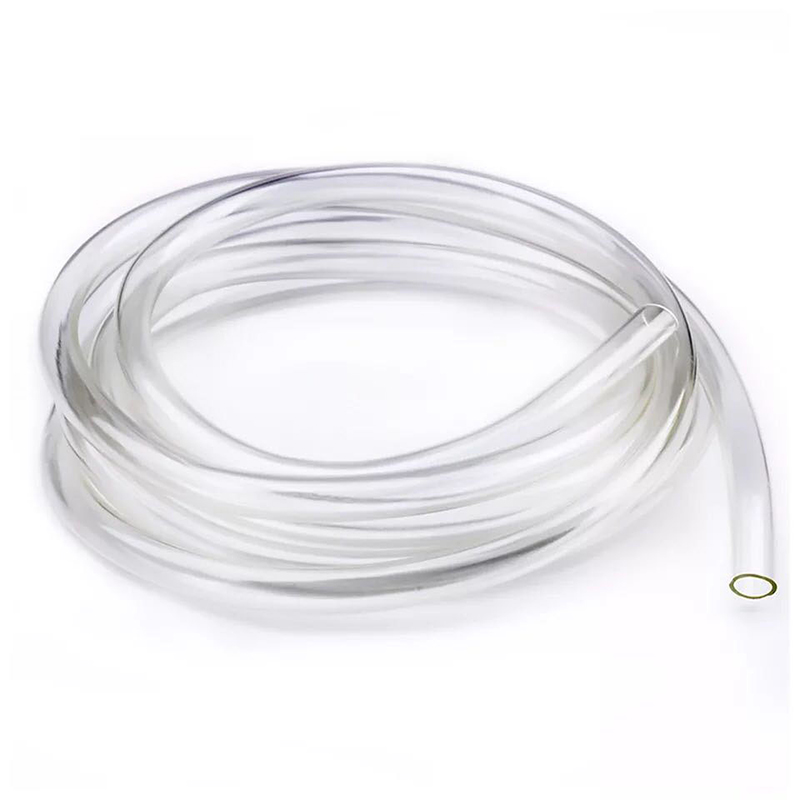

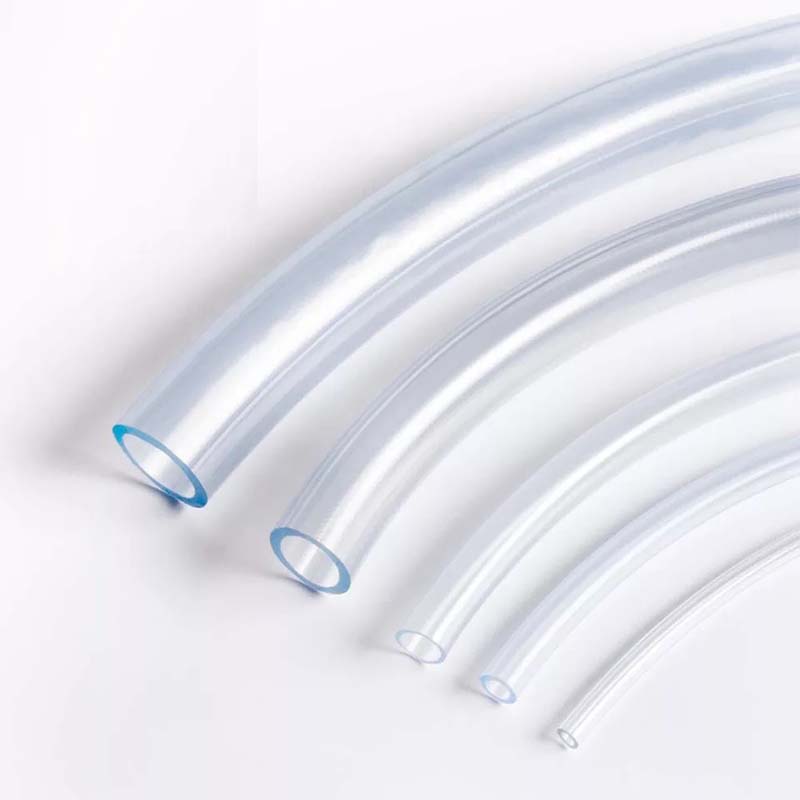

PVC TRANSPARENT CLEAR HOSE

A clear PVC tube is one flexible pipe composed of transparent polyvinyl chloride (PVC). PVC transparent hose is used for conveying water,oil,gas under normal working condition in factories,farm,ship,building and family.

Its fitting-fitting design enables a safe and leak-proof connection by fitting onto fittings of comparable size. The transparent material provides a clear view of the tube's contents.

Many applications, including home, business, and agricultural domains, frequently employ clear PVC tubing. In both low and high-pressure systems, it is often appropriate for transporting liquids, including chemicals, fuel, and water. Clear PVC tubing may be used outside since it is weather- and abrasion-resistant.

CONTACT NOW down load to pdf

Details

Tags

PRODUCT DETAILS

A clear PVC tube is a flexible pipe composed of transparent polyvinyl chloride (PVC). Its fitting-fitting design enables a safe and leak-proof connection by fitting onto fittings of comparable size. The transparent material provides a clear view of the tube's contents.

Many applications, including home, business, and agricultural domains, frequently employ clear PVC tubing. In both low and high-pressure systems, it is appropriate for transporting liquids, including chemicals, fuel, and water. Clear PVC tubing may be used outside since it is weather- and abrasion-resistant.

The transparency of a clear PVC tube makes it possible for the user to view the contents of the tube, which is one of its key advantages. This can be helpful in several situations, such as tracking the flow of liquids or looking for obstructions or other problems. The tube is a practical option for professional and do-it-yourself applications because it is easy to install and maintain. Clear PVC tube is also weather- and abrasion-resistant, making it appropriate for outdoor applications. It may be used in various situations since it is resistant to corrosion and different substances. Clear PVC tubing is a dependable and affordable option for many uses.

Read More About clear pvc suction hose

Read More About clear reinforced pvc hose

Construction:

Tube and Cover: PVC

Application:

PVC transparent hose is used for conveying water,oil,gas under normal working condition in factories,farm,ship,building and family.

Read More About pvc transparent pipe manufacturer

Characteristic:

Flexible, light, transparent
Food grade, non-toxic, without odor
Anti-erosion and anti-abrasion
Anti-aging, long working life

Temperature: -10℃(-50℉) to 65℃(+150℉)

inch	I.D	O.D	W.P.	B.P.	L
	mm	mm	bar（At23℃）		m
5/64"	2	4	2	8	200
1/8"	3	5	4	10	200
1/6"	4	6	4	8	200
3/16"	5	7	2.5	10	200
1/4"	6	8	1.5	9	100
5/16"	8	10	1.5	9	100
3/8"	10	12	1.5	9	100
3/8"	10	14	3	12	100
1/2"	12	15	2	9	100
5/8"	15	18	2	9	50
3/4"	19	22	2	9	50
1"	25	29	2	9	50
1-1/4"	32	38	2	9	50
1-1/2"	38	44	1	5	30
