Flexible Bathroom Sink Drains Downcomer Wash Basin Pipe Waste Pipe

Basic Info.

Model NO.	Polypropylene drain hose	Usage	Drainpipe, Water Supply Pipe, Air Conditioning System
Wall	High Grade Polypropylene	Spiral	Spring Steel Wire or PP Coated Steel Wire
Application	Sink, Basin or Bathtub, Air Conditioning System	Characteristic	with Steel Wire Helix Reinforcement
Teplota	-20ºC to +70ºC	Transport Package	Roll
Specification	customized	Origin	China
Production Capacity	50000 Meters/Month

KONTAKTUJTE IHNED stáhnout do pdf

Podrobnosti

Tagy

Product Description

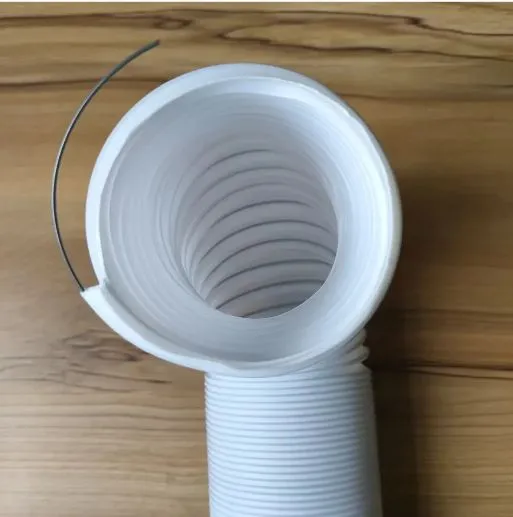

Konstrukce:
Wall: High grade Polypropylene
Spiral: Spring steel wire or PP coated steel wire
Charakteristický:
High flexible and compressible
With steel wire helix reinforcement
Tearing resistant
High tensile strength
Various of sizes are available
Different colors are available
Teplota: -20ºC to +70ºC(short time to 80ºC)

Velikost	ID	O.D.	Wall.thick	Bending radius	Vacuum pressure	Délka
Inch	mm	mm	mm	mm	Bar	m
1"	25	32	0.6	35	0.34	5
1.2"	32	38	0.6	42	0.32	5
1.5"	38	46	0.6	50	0.3	5
2"	51	58	0.6	65	0.24	5
2.5"	63	73	0.6	80	0.18	5
3"	76	85	0.6	90	0.15	5
3.5"	90	100	0.6	110	0.1	5
4"	102	112	0.6	120	0.08	5
5"	127	137	0.6	150	0.06	5
6"	152	162	0.6	180	0.04	5
8"	203	213	0.6	230	0.02	5
